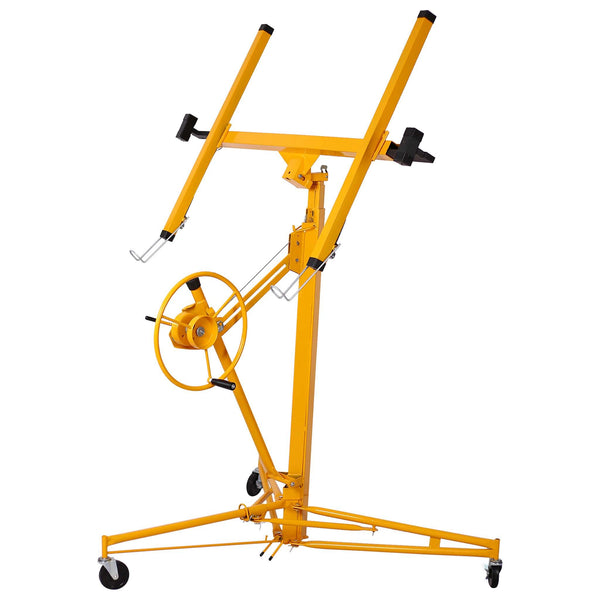

On Shine Lift Drywall Panel Hoist Jack Lifter

Product Code: W46537282

Availability:In stock

$262.99 $209.99

Available Options

Qty

Ask about this product
Features:

One Person Operation
Load Capacity: 150 Lbs
Sturdy welded steel construction with powder coating
Foot stops to keep the lift in place for safety
Disassemble no tools required
Sturdy welded steel
Hoist tilting for ceilings and walls
Built-in winch with brake
CE Standard
Easy to assemble
Could lower to 34" off the floor for easy panel loading
Perfect For Both Home & Commercial Use

Specification:

Color: Red/Yellow
Foldable: Yes√
Brakes: Yes √
Material: All welded Steel
Power source : hand chain

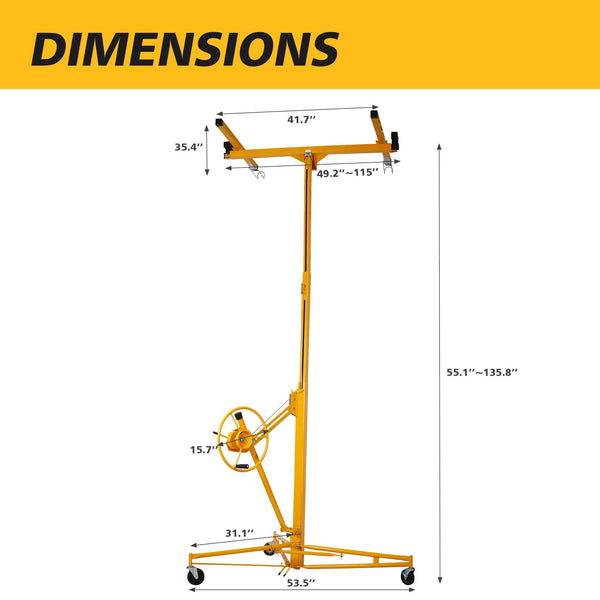

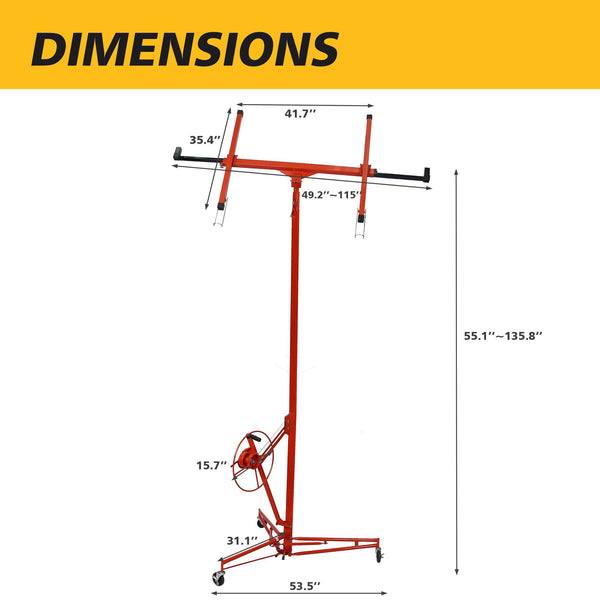

Max Height: 11'
Plate size : 4'x8'
Adjustable height: 4'to 11'
Apply various Drywall panels up to 4ft*16ft
4" caster wheels for easy rolling
Load capacity: 150lbs

The Drywall lift has following components which must be assembled before use:

1.Tripod base assembly
2.Frame assembly, which includes a winch assembly and standard telescoping lift sections
3.Cradle assembly, without its detachable cross arms
4.Two cradle cross arm assemblies
5.User's Manual Included


Maximum Support 150 Pounds
Our drywall lift supports the maximum load of 150 lbs. During the operation, we should pay attention to the weight of the lifted object, and remember not to exceed the maximum load to avoid accidents.



Built-In Winch With Brake
Lifter is easy to assemble and disassemble. The lock device and built-in winch brake are included for increased safety and sturdiness.



Adjustable Telescopic Arm
Telescopic arm can be adjusted from 49' to 114', ideal for installing 4' x 16' sheets.
